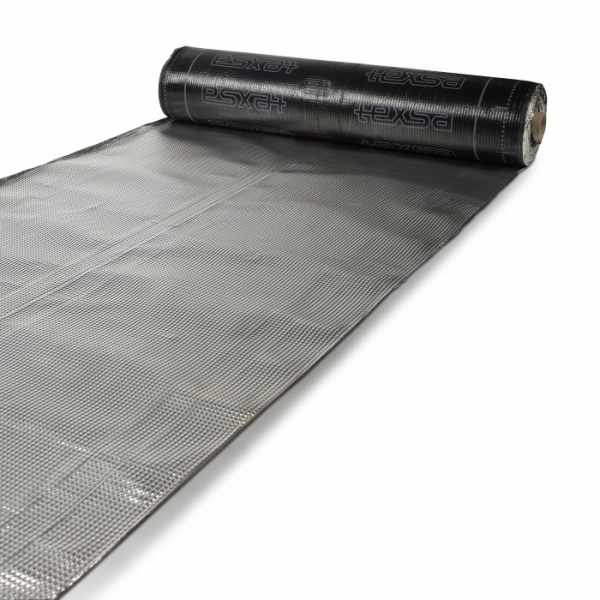

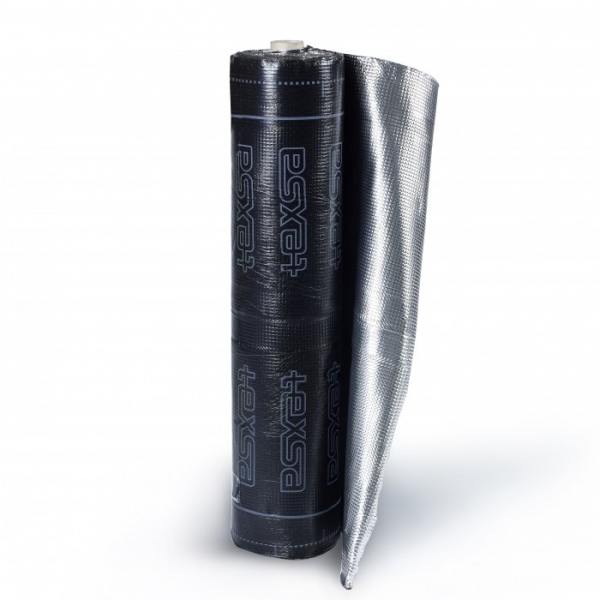

MORTERPLAS SBS ALU 3KG is a self-protected waterproofing membrane, made of SBS elastomeric bitumen, without reinforcement and finished with 0.08 mm embossed aluminium on the upper side and a thermally bonded film on the lower side.

Technical documentation

  • Logo Facebook
  • Logo Twitter
  • Logo Linkedin
  • Advantages
  • Application
  • Installation
  • Storage
  • Regulations
· The SBS elastomeric mastic provides the membrane with excellent flexibility at low temperatures, which allows it to be applied in cold climates.
The 0.08 mm embossed aluminium upper coating provides:
• Great dimensional stability
• Excellent resistance to high temperatures.
· MORTERPLAS SBS ALU 3KG is applied fully adhered as a cap sheet on non-trafficable roofs with aluminum self-protection.
· Suitable solution for upstand treatment. (For upstands taller than 1 m, and gables with pitches > 15%, the membrane will be mechanically fixed to the support; the MA-3 membrane cannot be used over thermal insulation).
· It is a non-reinforced membrane, suitable for protecting the primary membrane from the elements (ultraviolet radiation, ozone, etc.).
· SUPPORT: The surface must be dry, firm, even, clean and free of loose materials.
· It is applied with flame to be totally adhered to the bottom membrane, and it will be placed in the same direction and so that the overlap falls approximately in the middle of the bottom membrane.
· The flame is applied as uniformly as possible (the greater the heat, the greater the retraction) along the width of the membrane without reaching the overlap, which will be done later, since it is important that the temperature be the same in every area. The flame should be applied until the anti-adherent film pore opens.
· The membranes are installed in such a way that no more than three membranes overlap at the same point.
· Overlaps will be bonded with a flame, with a longitudinal overlap and a transversal overlap of at least 8 cm, first removing the minerals from the surface to ensure adherence.
· Installation and measurements will be conducted in accordance with regulations of the UNE 104401 standard.
Roll: 1 m x 13 m
Pallet: 351 m²
· In accordance with the EN 13707 standard. Certified with CE marking No. 0099/CPD/A85/0087
· Voluntary certification of the product with AENOR seal according to the same European standard.
· Quality System in accordance with ISO:9001
