VINITEX MP

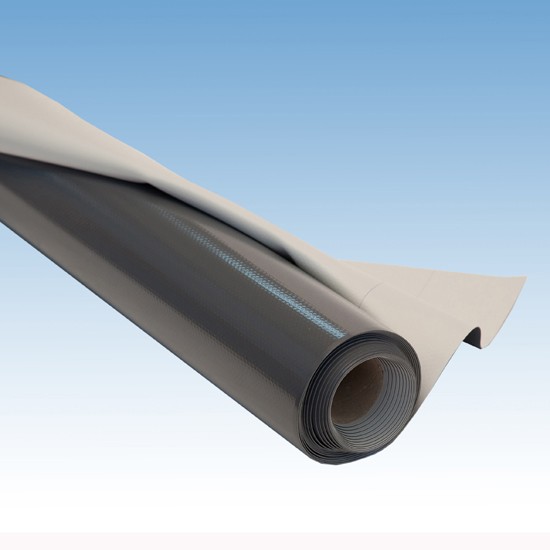

VINITEX MP is a PVC-P synthetic membrane reinforce with polyester mesh.

Technical documentation

  • Logo Facebook
  • Logo Twitter
  • Logo Linkedin
  • Advantages
  • Application
  • Installation
  • Storage
  • Regulations
· Resistant to wind stress
· Weatherproof and UV resistance.
· Good Ageing resistance.
· Highly puncturing resistance.
· Weathered resistance.
· Excellent mechanical properties.
· Easily Hot-air weldable, even several years after installation.
· Excellent flexibility at low temperatures.
· RAL colouring available on request for landscape or architectural purpose.
VINITEX MP is used for roof waterproofing, specially for mechanically fastened systems in flat or pitched roofs in new roof or re-roofing.
· Installation of Vinitex System must be performed by qualified or authorized applicator
· Substrates must be smooth, clean, and free of sharp edges or foreign substances. In contact to asphalt, bitumen, oils or existing membranes, a separation layer must be required.
· Membranes should be joined using hot air welding. Check the joint using a round-headed punch.
· Good Weldability depends on environmental conditions, equipment conditions (temperature, pressure, speed of work) and surface of the membrane, so the equipment should be adjusted to get a right welding.
Roll: 1,05m x 25m x 1,2mm
Pallet: 28 Rolls / 735m²

Roll: 1,60m x 20m x 1,2mm
Pallet: 23 Rolls / 736m²

Roll: 2,10m x 20m x 1,2mm
Pallet: 14 Rolls / 735m²

Roll: 1,05m x 20m x 1,5mm
Pallet: 28 Rolls / 588m²

Roll: 1,60m x 20m x 1,5mm
Pallet: 23 Rolls / 736m²

Roll: 2,10m x 20m x 1,5mm
Pallet: 14 Rolls / 588m²

Roll: 1,05m x 20m x 1,8mm
Pallet: 28 Rolls / 588m²

Roll: 1,60m x 20m x 1,8mm
Pallet: 23 Rolls / 736m²

Roll: 2,10m x 20m x 1,8mm
Pallet: 14 Rolls / 588m²

Roll: 1,05m x 20m x 2,0mm
Pallet: 28 Rolls / 588m²

Roll: 1,60m x 20m x 2,0mm
Pallet: 18 Rolls / 576m²

Roll: 2,10m x 20m x 2,0mm
Pallet: 14 Rolls / 588m²
· Produced under European Standard EN 13956. Certificate CE nº 1085/CPR/0261.
· Certificated by BBA (British Board Agreement) nº 11/4875.
· Manufactured by coextrusion or cast process in a plant certified ISO 9001 and ISO 14001.
